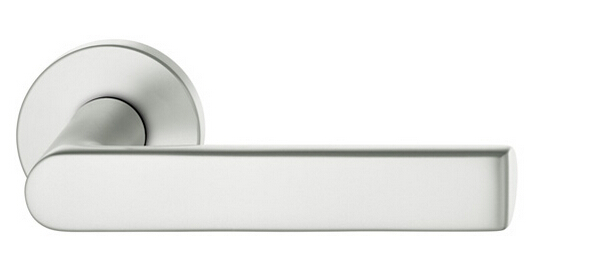

FSB ASL® - the new bearing from FSB Added benefits, flexibility and value(Mar 02,2017)
The FSB ASL® bearing sets new standards. FSB ASL® is a considerably enhanced and upgraded version of its predecessor bearing. It supersedes Product Groups 10 and 11 as the new Product Group 12.
FSB ASL® is always supplied as a set and can be universally deployed as both a “righthand” and a “lefthand” model. Whilst the standard variant for door thicknesses of from 39–58 mm caters to virtually all scenarios, FSB ASL® is also available to order for a far greater range of thicknesses at both ends of the scale (29–98 mm). Rounding off the benefits of our new heavy-duty bearing are through fixing with M5 screws in stainless steel, a 45 ° operating angle and a non-directional spring mechanism.This is just one reason why FSB ASL® enjoys Class 4 approval under DIN EN 1906.Classification key: 4 7 – 0 1 4 0 AIt is our aim with this innovation to meet the many and varied demands made of public project buildings whilst also opening up a greater degree of flexibility to our trade-stockist partners and sales middlemen in their day-to-day business – both for warehousing purposes and as regards handling either sets or individual components at the assembly stage. Moreover, the significantly improved price/performance ratio attained will make canvassing and consultancy in the public project business easier for our market partners.Prices currently set for hardware from Product Group 10 as per the 2016 price-list will continue to apply in 2017. The material, design and quality attributes you have come to know and love are retained to the same exacting standard. FSB ASL® boasts impressively functional engineering together with a discreet design in which the guide ring is no longer visible!
Product variants
Rose hardware (round + square) with PC, CH and RC keyways as well as for bathrooms
Short and long backplate furniture (oval + square) with PC, CH and RC keyways as well as for bathrooms
All variants also as lever/fixed-knob furniture
In Aluminium, Stainless Steel, Brass and Bronze

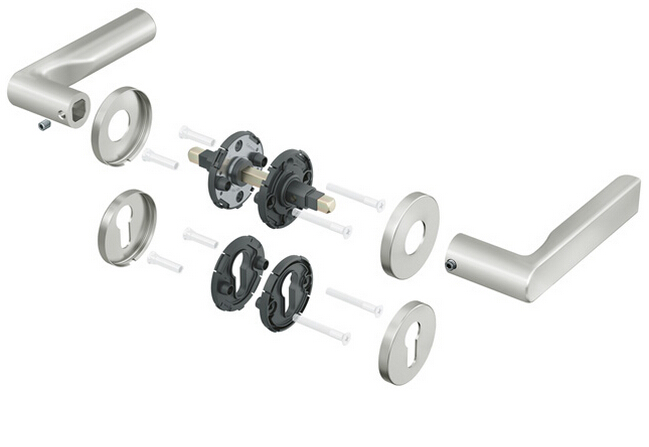

Adaptor
The adaptor technology adopted makes for extremely simple and rapid assembly,
because the baserose is screwed to the door leaf first, without either its cover or the handle
and additionally because it is no longer necessary to “screw past” the handle shank.
Non-directional spring mechanism
The positive mechanism fitted conforms to the DIN EN 1906 standard / Type of Operation A and facilitates an angle of rotation of up to 45 °. The positive mechanism springs fitted provide effective support for the lock follower spring. The interaction between the two serves to prevent heavy door handles sagging.
The positive mechanism acts in both directions, moreover, allowing the furniture to be fitted for either “righthand” or “lefthand” operation – which is particularly useful if it ever needs to be converted to fixed-knob/lever (entrance-door) furniture on site. This benefit obtains unreservedly even for entrance-door sets with a symmetrical door lever handle – hardware of this kind can likewise be deployed universally and non-directionally! The same applies with regard to any modifications required in the event of door thicknesses altering: due to the system operating with two female parts and a full-length spindle, on-site modifications are straightforwardly possible here, too.
Cover rose
The single-section roses and backplates are precision-fixed adopting the proven FSB clip-on technique.
Stainless steel-reinforced base
The combination of stainless-steel reinforcement and GFR plastic significantly enhances the tensile forces to which FSB ASL® hardware can be subjected.
M5 threaded bushes
Fixing either by means of through-fixed M5 stainless steel screws with retention lugs and threaded bushes in steel or of four timber screws and no retention lugs.
Solid spindle
The 7 mm or 8 mm solid spindle caters to door thicknesses of from 39–58 mm; version for thicknesses of from 29–98 mm likewise suppliable; further thicknesses to order.
The FSB ASL® bearing sets new standards. FSB ASL® is a considerably enhanced and upgraded version of its predecessor bearing. It supersedes Product Groups 10 and 11 as the new Product Group 12.
FSB ASL® is always supplied as a set and can be universally deployed as both a “righthand” and a “lefthand” model. Whilst the standard variant for door thicknesses of from 39–58 mm caters to virtually all scenarios, FSB ASL® is also available to order for a far greater range of thicknesses at both ends of the scale (29–98 mm). Rounding off the benefits of our new heavy-duty bearing are through fixing with M5 screws in stainless steel, a 45 ° operating angle and a non-directional spring mechanism.This is just one reason why FSB ASL® enjoys Class 4 approval under DIN EN 1906.Classification key: 4 7 – 0 1 4 0 AIt is our aim with this innovation to meet the many and varied demands made of public project buildings whilst also opening up a greater degree of flexibility to our trade-stockist partners and sales middlemen in their day-to-day business – both for warehousing purposes and as regards handling either sets or individual components at the assembly stage. Moreover, the significantly improved price/performance ratio attained will make canvassing and consultancy in the public project business easier for our market partners.Prices currently set for hardware from Product Group 10 as per the 2016 price-list will continue to apply in 2017. The material, design and quality attributes you have come to know and love are retained to the same exacting standard. FSB ASL® boasts impressively functional engineering together with a discreet design in which the guide ring is no longer visible!
Product variants
Rose hardware (round + square) with PC, CH and RC keyways as well as for bathrooms
Short and long backplate furniture (oval + square) with PC, CH and RC keyways as well as for bathrooms
All variants also as lever/fixed-knob furniture
In Aluminium, Stainless Steel, Brass and Bronze
Adaptor
The adaptor technology adopted makes for extremely simple and rapid assembly,
because the baserose is screwed to the door leaf first, without either its cover or the handle
and additionally because it is no longer necessary to “screw past” the handle shank.
Non-directional spring mechanism
The positive mechanism fitted conforms to the DIN EN 1906 standard / Type of Operation A and facilitates an angle of rotation of up to 45 °. The positive mechanism springs fitted provide effective support for the lock follower spring. The interaction between the two serves to prevent heavy door handles sagging.
The positive mechanism acts in both directions, moreover, allowing the furniture to be fitted for either “righthand” or “lefthand” operation – which is particularly useful if it ever needs to be converted to fixed-knob/lever (entrance-door) furniture on site. This benefit obtains unreservedly even for entrance-door sets with a symmetrical door lever handle – hardware of this kind can likewise be deployed universally and non-directionally! The same applies with regard to any modifications required in the event of door thicknesses altering: due to the system operating with two female parts and a full-length spindle, on-site modifications are straightforwardly possible here, too.
Cover rose
The single-section roses and backplates are precision-fixed adopting the proven FSB clip-on technique.
Stainless steel-reinforced base
The combination of stainless-steel reinforcement and GFR plastic significantly enhances the tensile forces to which FSB ASL® hardware can be subjected.
M5 threaded bushes
Fixing either by means of through-fixed M5 stainless steel screws with retention lugs and threaded bushes in steel or of four timber screws and no retention lugs.
Solid spindle
The 7 mm or 8 mm solid spindle caters to door thicknesses of from 39–58 mm; version for thicknesses of from 29–98 mm likewise suppliable; further thicknesses to order.
