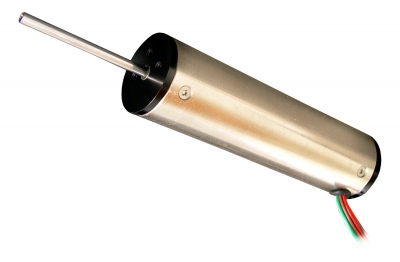

The new SDLM-019-070-01-01 direct drive linear motor is the latest addition to the series of zero backlash, zero cogging,
high acceleration, high speed, high resolution, long life linear servo motors from Moticont. Also known as an electric
cylinder, this compact direct drive linear motor is just 0.75 in. (19.1 mm) in diameter and 2.75 in (69.9 mm) long.
Protected inside the motor housing, the linear optical quadrature encoder is directly connected to the shaft for the
greatest possible accuracy. This direct drive linear motor features 1.25 μm (0.000049 in.) in of resolution.
The SDLM-019-070-01-01 direct drive linear motor has a stroke length of 0.500 in. (12.7 mm) and a continuous force rating
of 9.7 oz. (2.7 N) and peak force of 30.7 oz (8.5 N). This non-commutated direct drive servo motor features: Quiet long
life plain linear bearings, an integrated internal (1.25 micron resolution) quadrature optical encoder with differential
outputs, and a non-rotating shaft. Some applications include: Manufacturing (assembly and inspection equipment), sorting
and packaging, semiconductor handling, medical equipment and instruments, antenna positioning, dampers and valve actuators.
Direct coupling of the load or stage to the low inertia non-rotating shaft eliminates backlash and allows for high
acceleration/deceleration. Both ends of the motor and shaft ends have threaded mounting holes for easy integration into
new and existing applications. The SDLM-019-070-01-01 Direct Drive Linear Actuator is also available as a complete plug-
and-play linear motion system with a matching motion controller.
