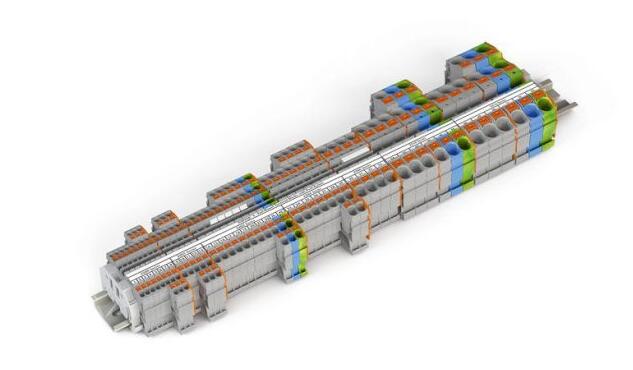

WAGO TOPJOB S line of DIN rail mount terminal blocks now includes push-button actuation. Orange push buttons on both sides of the terminal block identify where the operating tool must be applied. Press down on push-button with the operating tool, insert the conductor and remove the operating tool from the push-button.
They are suitable for all copper conductor types (solid, stranded and fine-stranded) size 22-4 AWG. Features include: push-button design ensures operation integrity with positive feedback, orange push-button distinguishes wire entry from tool entry, and push-in CAGE CLAMP allows direct insertion of ferruled or solid conductors.
The new push-button terminal blocks offer the same profile as the original open tool slot and the recently released lever versions of the TOPJOB S family. All three operating versions can be mixed and matched on the same DIN rail, as well as share accessories
