ITG Electronics, a manufacturer of inductors and transformers since 1963, introduced a line of mega power high current flat wire inductors for industrial and rugged environments. Offering a superior power rating compared with conventional flat wire inductors, the next-generation box-shaped item features denser magnetic materials allowing custom-level power in a standardized product, resulting in reduced weight and saved space.

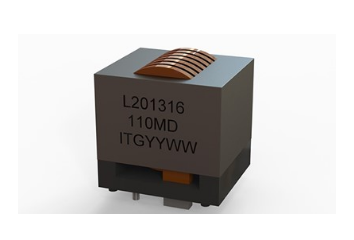

The ITG L201316Q offers an inductance range from 1.00H to 105uH, and high-power capabilities of 11.6uH 75 Amp / 105uH 25 Amp. This represents 2-4 times the power capabilities offered by leading competitors. The L201316Q is an alloy powder-based DIP Inductor with lower core loss and no thermal aging concerns.
Comprising AEC-Q200 compliant components for automotive applications, the ITG L201316Q utilizes exceptionally high-power density magnetics materials to achieve a the most powerful density inductor available in a standard product offering. Custom designs also are available. The series also is RoHs & HF compliant, and has a consistency-minded operating temperature range of -55°C to 150°C.
