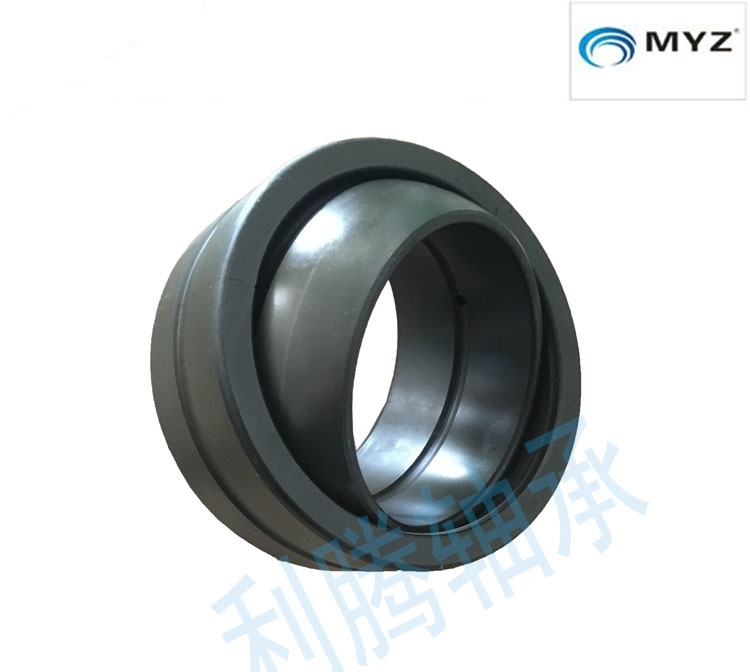

GEZ--ES Lubricated Radial Spherical Plain Bearings from MYZ

Resource from:  MYZ Likes:333
Sep 09,2019

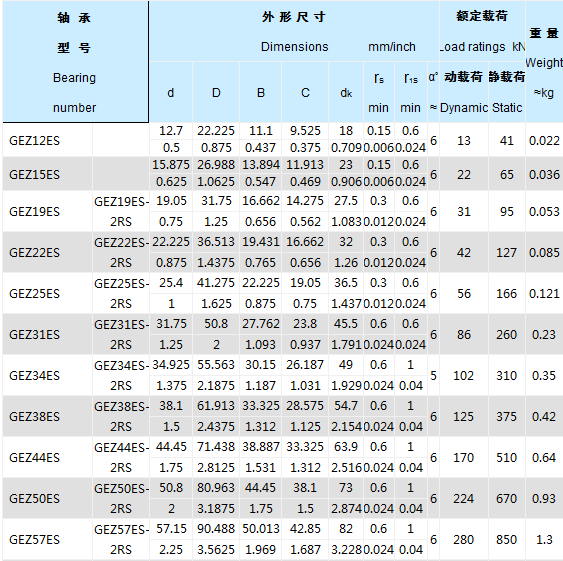

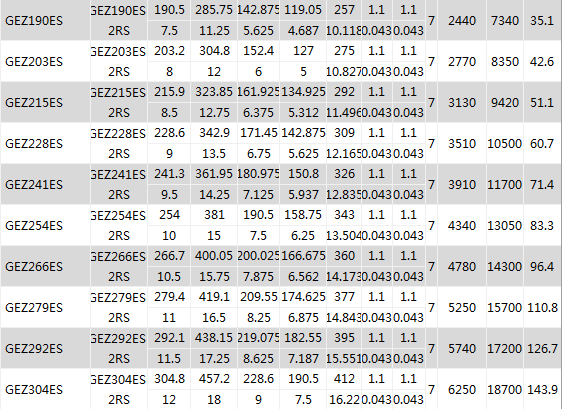

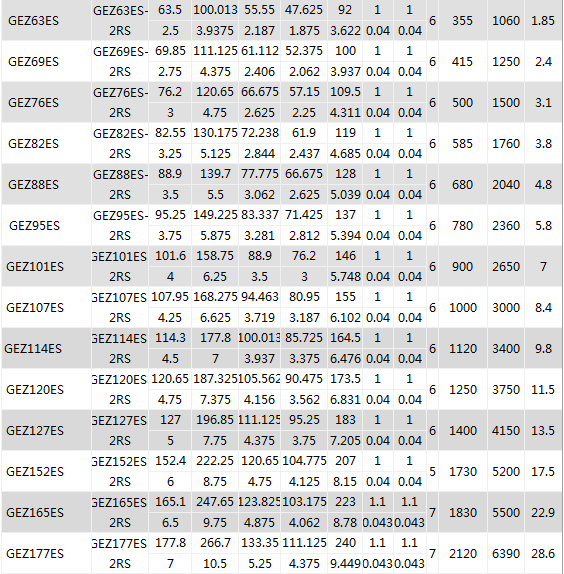

GEZ--ES

Series and bore diameter range:

GEZ…ES 12.7~304.8

Sliding contact surfaces:

Steel/Steel

Permissible operating temperature range:

-50℃~+150℃

Design characteristics:

As series GE…ES,but with inch dimensions.





d≤φ152.4mm,the sliding surface of inner ring can be designed crossed grooves,sketch map see page P118 figure2,suffix “/J”is added to bearing number,e.g.GEZ57ES/J


About Liteng Bearing


Located in Linqing---one of the famous bearing production base in China, Linqing Liteng Bearing Co.,Ltd, brand MYZ, is a professional spherical plain bearing manufacturer for many years .


MYZ mainly produces and exported lubricated radial spherical plain bearings, self-lubricating radial spherical plain bearings, thrust spherical plain bearings, angular contact spherical plain bearings, non-standard bearing, high temperature bearing and universal bearing,including series of GE-DO, GE-DO-2RS, GEFO, GE-FO-2RS, GE-GS-2RS, GE-LO, GE-HO-2RS, GE-ZO-2RS, GE-UK-2RS, GE -FW-2RS, SB, SBB, SB-A, GE-SX, GE-SW, GE-AX, GE-AW, B..-L, etc. Their products are widely applied in engineering, aerospace, mining, metallurgy, transportation, light industry and machinery industries.


If any inquiry of spherical plain bearings, just send to MYZ freely. They will give the best offer immediately.


MYZ contact details:

Tel: 0086-635-2813997

Fax: 635-2813256

Mobile Phone: 0086-13906352997

Email: guanjie599@163.com

website: http://www.ltgjzc.com


(MYZ)
