Tolomatic Releases High Force Linear Actuator

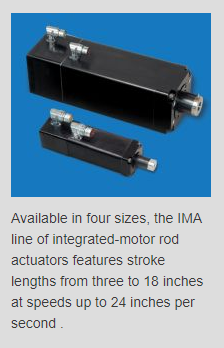

Tolomatic's unique IMA55 high-force servo linear actuator is now available with an optional roller screw that boosts its thrust capability to 6,875 pounds force (30,470 N). In addition, a new compact IMA22 integrated-motor actuator has been added to the line. The IMA22 features a ball screw and can deliver up to 325 pounds force (1,446 N). Available in four sizes, the IMA line of integrated-motor rod actuators features stroke lengths from three to 18 inches (76.2 to 457.2 mm) at speeds up to 24 inches per second (610 mm/sec). The addition of these two actuators significantly expands the range of applications for these actuators to include pressing, clamping, valve control, spot welding and volumetric filling. "With the addition of the roller-screw option on the IMA55, the service life of the actuator increases by nearly 10 times in high-force applications," said Aaron Dietrich, marketing manager, Tolomatic. "The standard ball screw on the IMA22 offers efficiency and economy in lower-force applications that require accuracy, repeatability and durability in a compact package."

All of the IMA actuators integrate a servomotor and a ball or roller screw for long service life that is designed to fit a multitude of budgets. With its integrated servomotor, the IMA actuator is shorter for a given stroke length than other types of rod actuators. Its patent-pending design allows for easy re-lubrication of the screw without disassembly, reducing maintenance and increasing service life compared to other rod actuators without this feature.
