Marginal Bearing --MG-8 Steel Bronze Powder With PEEK/PTFE Marginal Bearings

Resource from:  www.marginalbearing.com Likes:93
Mar 16,2021

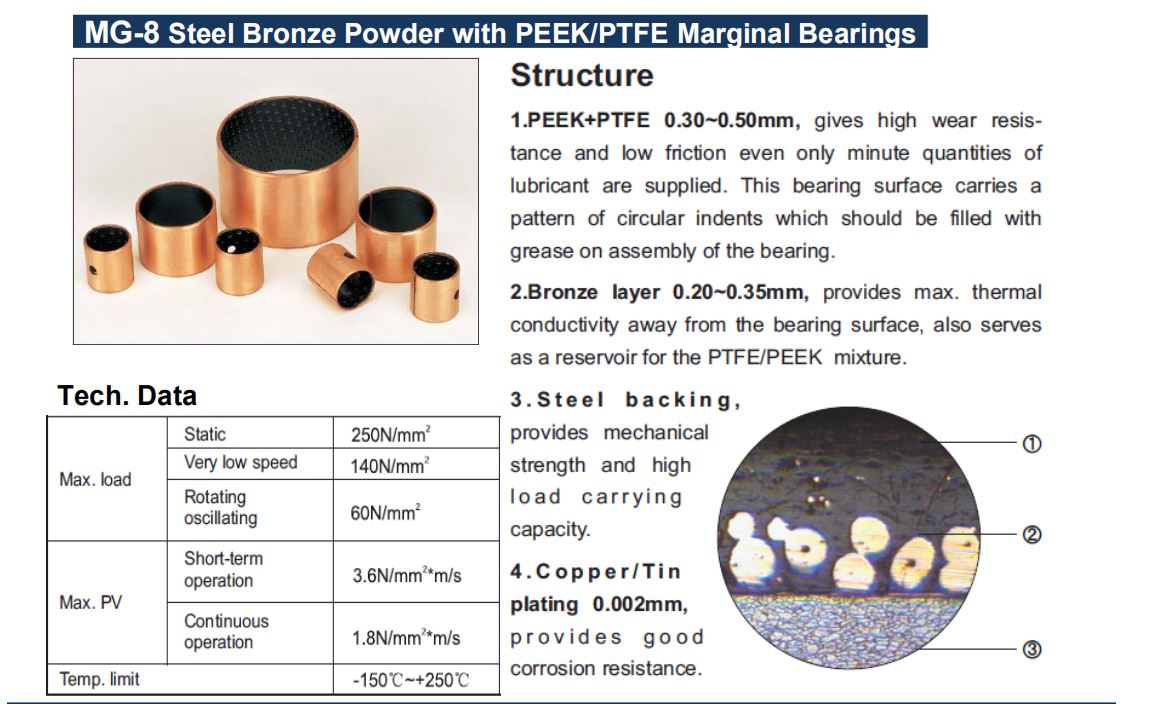

China MG-8 Steel Bronze Powder With PEEK/PTFE Marginal Bearings:

Structure

1.PEEK+PTFE 0.30~0.50mm,gives high wear resis- tance and low ficion even ony minute quantties of lubricant are supplied. This bearing surface carries a pattern of circular indents which should be fled with grease on assembly of the bearing.

2.Bronze layer 0.20~0.35mm,provides max.thermal conductivity away from the bearing surface,also serves as areservoir for the PTFE/PEEK mixture.

3.Steel backing, provides mechanical strength and high load carrying Rotating.

4.Copper/Tin plating 0.002mm, provides good corrosion resistance.

Tech. Data

1)Max Load

Static:250N/mm²

Very low speed:140N/mm²

Rotating oscllating:6ON/mm²

2)Max.PV

Short-term opertaion:3.6N/mm²"m/s

Continuous opertaion:1.8N/mm*m/s③3)Temp.imit

150℃~+250℃


https://www.marginalbearings.com/bronze-wrapped-bushings/mg-8-steel-bronze-powder-with-peek-ptfe.html

(www.marginalbearing.com)
