Radial spherical plain bearings play a key role in off highway equipment and vehicles

John Wallace, Vice President of Operations, AST Bearings and Steven Sanchez, P.E., BSA Certified Bearing Specialist, Engineering Manager, AST Bearings

Original equipment manufacturers (OEM) of off-highway equipment and vehicles are continuously looking for new ways to apply technology into their designs, both new and old — anything that will give their products an edge in productivity, payloads, and efficiency. The machines and vehicles they produce must endure extreme environments, demanding operating conditions, and heavy loads. Reliability and ease of maintenance are paramount; repairing equipment on-site is costly, and often almost impossible. However, many designs are built upon tried-and-true platforms that incorporate drivetrains, suspensions, steering linkages, torsion bars, connecting rods, articulated joints, heavy duty linkage pivots, and hydraulic cylinders. All of these applications have something important in common: they use radial spherical plain bearings and rod ends. Engineers have yet to develop bearings that better accommodate the combinations of movements and heavy loads these vehicles and equipment encounter, with reliability and cost-effectiveness.

Here’s what you should know about these relatively simple and extremely tough bearings found in most off-highway applications.

How they work

Radial spherical plain bearings have an inner ring with a sphered convex outside surface, and an outer ring with a correspondingly sphered (but concave) inside-sliding contact surface. The two general styles relate to the manufacturing method. Swaged style bearings are made by “swaging,” or forming, the outer ring over the inner ring (or ball). Fractured style bearings have an outer ring that is split, or fractured, in one position to facilitate assembly of the rings during manufacturing.

The bearings can be comprised of different sliding contact surface combinations, i.e. the sliding surfaces of inner and outer rings are made from different materials. Some combinations require maintenance (such as steel-on-steel), while others do not.

Comparison to rod ends

Rod ends consist of an eye-shaped head with integral shank, forming a housing and one of three options: a standard spherical plain bearing, a spherical plain bearing inner ring, or a spherical plain bearing inner ring with a sliding layer between the bore of the head and the inner ring. As a rule, rod ends are available with left or right-hand female or male threads. Rod ends can have the sliding contact surface combinations steel-on-steel, steel-on-bronze, steel-on-PTFE composite material, or steel-on-PTFE fabric.

How they work

Radial spherical plain bearings have an inner ring with a sphered convex outside surface, and an outer ring with a correspondingly sphered (but concave) inside-sliding contact surface. The two general styles relate to the manufacturing method. Swaged style bearings are made by “swaging,” or forming, the outer ring over the inner ring (or ball). Fractured style bearings have an outer ring that is split, or fractured, in one position to facilitate assembly of the rings during manufacturing.

The bearings can be comprised of different sliding contact surface combinations, i.e. the sliding surfaces of inner and outer rings are made from different materials. Some combinations require maintenance (such as steel-on-steel), while others do not.

Comparison to rod ends

Rod ends consist of an eye-shaped head with integral shank, forming a housing and one of three options: a standard spherical plain bearing, a spherical plain bearing inner ring, or a spherical plain bearing inner ring with a sliding layer between the bore of the head and the inner ring. As a rule, rod ends are available with left or right-hand female or male threads. Rod ends can have the sliding contact surface combinations steel-on-steel, steel-on-bronze, steel-on-PTFE composite material, or steel-on-PTFE fabric.

Since bearings with steel-on-steel sliding contact surface combinations require regular relubrication, they typically have lubrication holes and grooves in the inner and outer ring to allow grease to flow into the areas of sliding contact. It is important these features line up with the grooves and grease fittings in the mating components when mounted.

When mounting bearings with a fractured outer ring, it is critical that the joint be positioned at 90⁰ to the main load direction, otherwise the service life will be shortened, particularly under heavy loads. The angle of tilt, or misalignment, is usually noted with the symbol α in most catalogs and can vary from 3⁰ to 15⁰. Bearing tolerances, internal clearances, and recommended fitting practices are listed in the Engineering sections of most catalogs. In the US, ANSI/AFBMA Standards 22.1 and 22.2, Series 3, covers these types of bearings.

One of the most common uses of spherical plain bearings in off-highway equipment is with hydraulic cylinders, linear actuators designed to deliver force in a single direction, because they’re effective in dealing with misalignment — a common cause of hydraulic cylinder failure. Spherical bearings are often used in the clevis style mounts of hydraulic cylinders. Deviations from the centerline of the load, introduce what is known as “side loading”. This places lateral stress on cylinder pistons, seals, bushings and rods — these components are not designed to withstand these forces, so they will fail quickly. Spherical bearings allow for some degree of misalignment due to side loading, improving cylinder longevity.

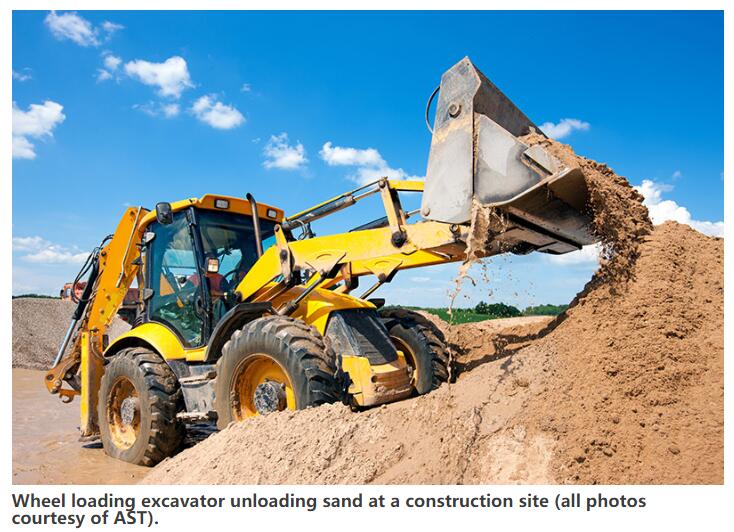

A typical excavator or backhoe has a half dozen cylinders, or more, for the bucket, boom, dipper, outriggers, steering, and other equipment and accessories on the vehicle where these bearings are used, in addition to steering linkages, shock absorbers, and pivot points.

Spherical plain bearings are available in various types and configurations to address specific loading and operating conditions, and environmental conditions.

Sealed Type

Spherical plain bearings are available with seals to protect the sliding surfaces in severe environments. The seals are affixed to the outer ring and make positive contact with the inner ring keeping dirt and debris out, and the lubricant in. Variations in seal materials and design vary from manufacturer, but most seals are either a polyester elastomer material or a buna nitrile rubber bonded to a sheet steel insert. These plastic and rubber seals are best suited for applications where the bearings see frequent tilting or circumferential movement. This tends to keep the contact surfaces clean.

Extended Inner Ring

To ease assembly, and eliminate the need for spacers, these bearings are also available with an extended inner ring design. These have a slightly higher cost.

High Angle

Depending on their size, most spherical plain bearings accommodate misalignment in the 5 to 15 degree range. However, higher angles of misalignment can be accommodated with a special series. This series has an increased cross section inner ring which allows for the higher angle of tilt, up to 20 degrees.

Impact Resistant

In some off highway applications shock or impact loading is common and can have a devastating effect on bearings. Most spherical plain bearings are manufactured from thru hardened 52100 chrome steel. These bearings have good wear resistance and fatigue strength. However, with their high hardness, they are susceptible to chipping, cracking, and breaking under these conditions. Spherical plain bearings manufactured from low carbon, carburizing steels, such as 8620, and processed with a special heat treatment known as case hardening are recommended in these applications. The case hardening provides an outer layer of high hardness for wear resistance and fatigue and the core of the bearing is “softer”, or more ductile, which allows the bearing to absorb impact. These bearings carry a price premium.

Loading and life

Spherical plain bearings can accommodate loads in both the axial and radial directions, with the load predominantly radial for the latter. Angular contact types are available for heavier thrust or axial loading. Loads can be in combination, and the direction constant or alternating.

Other loading considerations:

Loads are dynamic when sliding movements take place in a loaded bearing, causing wear in the bearing.

Dynamic loads can be oscillatory or rotational. Oscillatory loads can be accommodated only along the lateral axis and are limited to the angle of misalignment, or tilt, designed into the bearing.

The higher the frequency of oscillation, the lower the bearing life for a given application.

Under static load, the limiting factor is the strength of the material of the bearing or rod end.

While these bearings have very straightforward construction and operating principles, calculating service life is tricky — so engineers are advised to contact the manufacturer for assistance. The values of load ratings depend on the definition used, so it’s not always possible to make direct comparisons with load ratings published by each manufacturer.

Dynamic load rating

Dynamic load rating is used for calculations when the spherical plain bearing is subject to dynamic stress. It represents the load, constant in magnitude and direction, under which a basic rating service life, expressed as a sliding distance, will be attained for continuous oscillating movement at a defined sliding velocity at room temperature. It assumes that the load acting on radial and angular spherical plain bearings and on rod ends is purely radial, and that the load acting on spherical plain thrust bearings is purely axial and acts centrically. Dynamic stresses often occur in combination: when tilting, oscillatory or rotational movements are made under load; with micro-sliding movements under alternating loads; and with loads alternating at high frequency.
