Ultrahigh-speed cameras with back side illumination

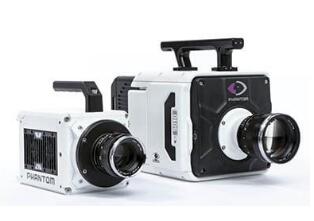

Joining the T-Series platform, the Vision Research Phantom T3610 achieves significantly higher frame rates of 38,040 frames per second (fps) at 1280 x 800 resolution and up to 875,000fps at reduced resolution. T-Series benefits include a compact form factor and lower power requirements, enabling greater portability and flexibility with tripods and other support.

The TMX 5010 joins the TMX 6410 and 7510 cameras as the entry point to the TMX family. Benefits include a higher RAM capacity up to 512 gigabytes (GB), a higher partition offering of 511 segments, standard 10Gb Ethernet with a rugged RJ45 port, and the ability to upgrade to higher throughput models at a later date.

Both the T3610 and TMX 5010 camera models include features designed to maximize image capture and workflow flexibility, including a 2x2 binned mode for higher vertical resolution at the camera’s top frame rates.

Their back side illumination (BSI) sensor technology also provides greater sensitivity and sustained throughput by placing the photoactive surface above the circuitry. This design provides a direct route for photons and improves signal efficiency. Extreme Dynamic Range (EDR) is also included to capture detail in flashes and saturated highlights.

T3610 Key Specifications

Maximum resolution: 1280 x 800

Frame rate at maximum resolution: 38,040fps

Maximum frame rate (standard mode): 875,000 at 1280 x 32*

Maximum frame rate (binned mode): 875,000 at 640 x 64*

Minimum exposure: 1 microsecond (standard); 190 nanoseconds*

Native ISO: 40,000D (mono), 12,500D (color)

Maximum available RAM memory: 256 GB

10Gb Ethernet: Optional

CineMag compatibility: Optional

Size and weight: 5" x 5" x 8"; 10 lb

*with export-controlled FAST option

TMX 5010 Key Specifications

Maximum resolution: 1280 x 800

Frame rate at maximum resolution: 50,725fps

Maximum frame rate (standard mode): 583,330 at 1280 x 64; 1.16 million fps at 1280 x 32*

Maximum frame rate (binned mode): 583,330 at 640 x 128; 1.16 million fps at 640 x 64*

Minimum exposure: 1 microsecond (standard); 95 nanoseconds*

Native ISO: 40,000D (mono), 12,500D (color)

Maximum available RAM memory: 512 GB

10Gb Ethernet: Standard

CineMag compatibility: Optional

Size and weight: 7" x 7" x 11.7"; 20 lb

*with export-controlled FAST option

The T3610 will begin shipping in August, while the TMX 5010 is shipping now.

Vision Research is a business unit of the Materials Analysis Division of AMETEK Inc., a leading global manufacturer of electronic instruments and electromechanical devices.
