Stepper motor motion control systems

To complement the expanding line of single and multi-axis motion control stages, Optimal Engineering Systems (OES) has added the ADAGIO-X-STPR series of motion control systems. The ADAGIO-X-STPR Series of rack-mounted stand-alone stepper motor controllers are cost effective solutions for controlling and driving single and multi-axis stepper motor stages such as: AQ single and dual axes X and XY series stages, the YPR series of 3-axes Yaw, Pitch, and Roll Stages, the 4 axes XYZR (a 3 XYZ linear axes plus a vertical rotary stage.

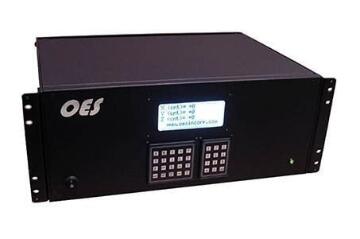

Each 19" rack mounted ADAGIO-X-STPR motion controller includes a power supply, and motion controller cards for 1, 2, 3, or 4 axes, and micro-stepper drivers for single and two-phase steppers requiring up to 7A per phase.

Capabilities include:

Set acceleration

Set velocity

Set position

Absolute move

Relative move

Find home

Zero position counter

Go to position zero

Stop all motors

Limit switches

Easy to install and use, these stepper motor controllers are totally integrated solutions featuring:

Externally controlled, Stand-alone, and Manual operation

4-line LCD

32-key keypad

Analog and digital inputs and outputs that can accommodate Quadrature Encoder feedback for position verification and analog joysticks, trackballs

ADAGIO-X-STPR motion controllers operate on an input power of 115VAC or 230VAC, 50Hz to 60Hz, have Auto Current Reduction, and can be ordered plug-and-play when ordering any one of the many single or multi-axis stages available from OES.
