Integrated speed controller for flat motors

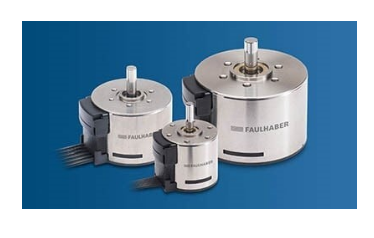

The BXT motor family, consisting of brushless DC-servomotors with especially short design, was expanded in all sizes with a diameter-compliant, integrated speed controller.
With an additional attachment length of just 6.2mm, the motor/speed controller combinations are available with the same installation space as the products with the IEF3-4096 (L) integrated encoder. The speed controller is fully integrated in the robust motor housing.
The motors can be put into operation quickly with the Motion Manager (from version 6.6). The speed controller is connected to the application with a six-pole flat cable; suitable connectors are available as an option.
The speed controller can be combined with the 2214…BXT H, 3216…BXT H, and 4221…BXT H housed BXT motors. Even with full integration, the speed controller guarantees the use of nearly the entire power and speed range of the corresponding base motors. Well-designed cooling minimizes thermal losses.
BXT H motors with integrated speed controller precisely control speeds in small spaces where high torques are also required.
At-a-glance:
• Compact design
• Torque up to 92mNm, continuous output up to 60W
• Stable, precise mechanical speed control from 200rpm to 10,000rpm
• Second shaft end optionally available in sizes 32mm, 42mm
