Gear Quality Inspection

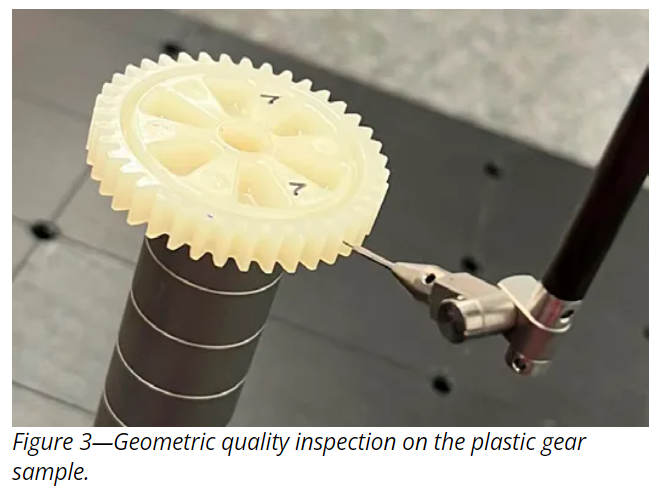

Geometric quality assessments were conducted on three gear specimens from each material group using a Zeiss Coordinate Measuring Machine (CMM) equipped with a Zeiss VAST XXT scanning probe (Fig. 3). The evaluation encompassed critical gear parameters, including profile deviation, lead variation, pitch error, and runout, all measured in accordance with the ISO 1328 standard for gear quality inspection (Ref. 10). The quantified parameters and their corresponding quality grades are summarized in Table 2. As the quality grades among the polymer gear sets exhibited minimal variation, it was assumed that geometric quality had a negligible effect on the observed NVH behavior during testing. Although the steel gears demonstrated superior geometric precision, they were included in the experimental matrix to enable quantification of NVH differences attributable to material substitution.

Testing Conditions The gear pairs were evaluated within an enclosed acoustic chamber integrated into the gear test rig, effectively isolating the test specimens from external acoustic interference. This setup ensured that only the noise generated by the meshing gear pair was captured, eliminating the influence of extraneous sound sources. Throughout all experiments, rotational speed, applied torque, and gear temperature were rigorously controlled (Figure 4). Given the sensitivity of NVH performance to operating conditions, each gear pair was tested at two discrete torque levels, with three corresponding rotational speeds per torque level, to assess the influence of both parameters. Gear temperature was actively regulated and maintained at 80°C, measured directly in the tooth engagement zone. The complete matrix of test loads is detailed in Table 3. Testing was conducted under both dry and, for selected combinations, grease-lubricated conditions. For each material pairing, three independent test repetitions were performed, with a new gear pair employed in each instance to eliminate the effects of wear. All gear sets operated at a fixed theoretical center distance of 38.45 mm, established using a high-precision positioning mechanism with an accuracy of ±0.01 mm.

Seven distinct polymer material combinations, selected from commercially available grades commonly utilized in gear applications, were evaluated in this study. For comparative benchmarking, a steel gear pair of identical geometry was also tested. The evaluated material pairings are as follows: Steel–Steel Steel–POM (run in dry and grease-lubricated conditions) POM–PPA+30%GF PA66–PPA+30%GF POM–PA66 (run in dry and grease-lubricated conditions) PA6+15%G–POM+10%AF POM–PA66+30%GF One key advantage of plastic gears is their ability to operate in dry conditions without external lubrication. However, many gearboxes with plastic gears still use grease, as it typically improves efficiency and reduces wear. To reflect common practical applications, most of the tested material combinations were evaluated under dry conditions, except for the Steel–POM and POM–PA66 gear pairs, which were tested in both dry and grease-lubricated environments. The lubricant used was a grease formulated from synthetic hydrocarbon base oil thickened with a barium complex soap. The kinematic viscosity of the base oil at 80°C was measured at 10.3 cSt. Prior to testing, the grease was manually applied to the gear teeth, ensuring complete coverage of the meshing surfaces on both gears (Figure 5). No additional grease was supplied during the test runs.
