Walter introduces a performance copy milling grade
Walter has introduced a new milling grade, the PVD-coated Tiger·tec Gold WSM36G. WSM36G has an aluminum titanium nitride (AlTiN) coating that features excellent layer bonding, which is topped with a gold-colored zirconium nitride (ZrN) coating layer for the best wear detection. As the ZrN coating wears, it reveals the violet bronze color of the AlTiN coating. The Walter WSM36G grade increases tool life by 50% compared to an existing grade.
Walter optimized the layer thickness of the coatings to provide optimal coverage of the insert’s sharp cutting edges. The WSM36G grade features a smooth surface layer with the perfect balance between toughness and wear resistance.
The Tiger·tec Gold grade WSM36G is ideal for machining materials made from titanium alloys (ISO S material group). The grade is also suitable for milling nickel-based superalloys and stainless steel (ISO S and M material groups).

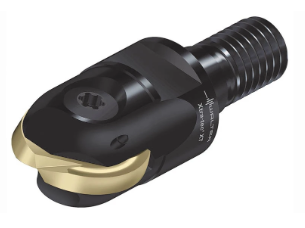

The new grade is specifically for the P3204 inserts used in the Walter Xtra·tec XT M5460 profile milling cutter for precise copying and finishing. The P3204 exchangeable insert features a fully ground circumference allowing the Xtra·tec XT M5460 profile milling cutter to benefit end users by enabling maximum process reliability because of the strong cutting edges, the finest surface finish quality due to smooth tool coatings and the ability to optimally remove chips, and maximum cost-efficiency because the cutter can run at a high cutting speed.
The cutting diameter (Dc) for the Xtra.tec XT M5460 profile milling tool is offered from 8mm to 32mm, or 3/8" to 1.0" and is available with ScrewFit adaptation, a cylindrical-modular interface or a cylindrical shank.
