Digital depth gages

Mahr Inc., a global manufacturer of precision measurement equipment used for dimensional metrology, has expanded its line of digital depth gages, adding the pocket-sized 30 EWRi for fast depth measurements and the new universal depth gage 30 EWR-U/40 EWRi-U which includes interchangeable anvils.

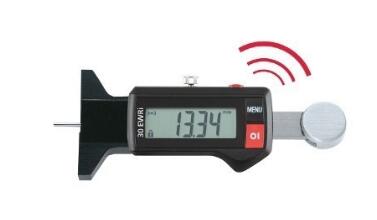

The 30 EWRi is a compact depth gage with a 0.06” (1.5mm) contact and 1” inch (25mm) gaging range with integrated wireless data transmission. It is ideal for mobile use in manufacturing and inspection at the point of manufacture.

Mahr’s new 30 EWR-U universal depth gage includes MarConnect output for wired USB RS-232 or Digimatic while the 30 EWRi-U with integrated wireless data transmission brings new application versatility to depth gage measurements. Both gages incorporate interchangeable anvils to multiply the measurement capabilities of the gage. The gage also comes with a 30 Ud twin hook anvil standard for measuring basic widths and distances.

Five anvil choices are also optionally available to increase the gages’ measurement capabilities. Now, measuring depths and recesses with various configurations of ball or chisel style anvils becomes a lot easier and cost effective rather than trying to find a costly special alternative. Both the 30 EWR-U and 40 EWRi-U come in measuring ranges of 0” to 12” (0mm to 300mm) or 0” to 20” (0mm to 500mm) and each has resolution of 0.0005” (0.01mm).

All MarCal depth gage products offer IP67 resistance to dust, coolants and lubricants, and are easy to use with high contrast digital display, locking screw, zero reset function, and reference system for retaining zero immediate measurement readout. Built to provide years of quality service, the units include steel measuring surfaces; hardened steel slide and beam construction; raised and lapped guideways for the protection of the scale; and even include dirt wipers integrated in the slide.

Integrated wireless data transmission simplifies the recording and documenting process, especially in the networked factory of Industry 4.0. With the touch of a button on the instrument, keyboard, timer, remote control, or foot switch, acquired data is sent from the gage to an i-Stick radio receiver plugged into the USB port of the computer.

MarCom 5.2 software enables fast and easy setup of measuring stations with wireless (or wired) data transfer to the PC. The MarCom cell control is highly flexible. Measured values from connected devices can be automatically transferred into separate Excel columns, tables, or files ensuring the reliability of measurement data documentation. At the same time, the MarCom software ensures that readings can be passed on through an integrated virtual interface box to an SPC/CAQ software such as Q-DAS or Babtec.
