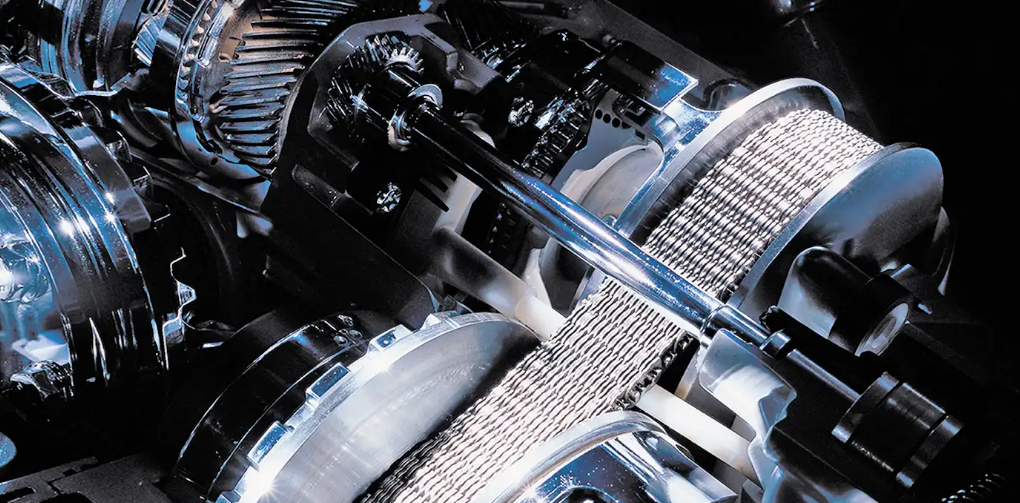

Transmissions – CVT

All transmission models have unique problems that are common to that model; JATCO CVT units are no exception. Technicians are facing an uphill battle when it comes to diagnosing and repairing CVTs if they don’t have the right information on hand. Knowing what the common issues are and understanding the options available to isolate and fix problems are the keys to a successful repair.

Without the right information, we end up making assumptions – often incorrect ones. Generally, when unfamiliar with a transmission, we start by searching bulletins and websites for service clues. Sometimes we read a tip and assume that the information matches our complaint. If we are action-oriented and short on time, we might react too quickly and assume that pulling out the unit for repair is best. But, too often, assumption takes the long path – to the wrong conclusion.

The following are examples of “runaway” assumptions:

• After pulling the pan for routine maintenance service on a unit with 40,000 miles, the technician finds the magnets heavily loaded when compared to a typical automatic. It looks like the unit is well on its way to failing.

• After cleaning the magnets and refilling the unit with the correct CVT fluid, the car is test driven around the block. It works well and is ready for delivery.

• Two days after picking up the car, the owner comes back claiming the vehicle has excess noise and seems to slip. Because of the material previously found on the magnets, the decision is made to pull the transmission.

Hold on, action-oriented enthusiast. Not so fast! If you want to be CVT-successful, you’ve got to know why these assumptions are incorrect. Once you have that information, you can get down to the business of learning some of the common CVT problems and their causes, all without removing the unit from the vehicle.

The first false assumption has to do with the magnets. A certain amount of magnetic fuzz is normal in a CVT inspected with 40,000 to 50,000 miles. The push-belt links create fretting where they contact the sheave/pulley surface, most of which is generated during break-in. But, in noting this material is normal, consider that much of that ferrous fuzz has been circulating throughout the valve body. It has embedded into the solenoids and stuck onto the speed sensors — all of which are electromagnets — while also scrubbing away at the aluminum valve bores. This means that the fuzz is indeed normal, but so is low-mileage valve bore wear.

The second incorrect assumption was that test driving the vehicle around the block after fluid exchange was sufficient. These units use a thermal element in the water-to-oil (WTO) cooler. The fluid must reach approximately 150°F for the element to open and flow oil to the cooler. Once it opens, air is purged, leaving the sump level low. Low fluid causes chain slip and noise on acceleration. Driving it in this low-fluid condition will end up damaging the unit and requiring a tow-in.

The third erroneous assumption was that the transmission needs to be pulled out. As we’ve just seen, committing to pulling the unit before verifying correct fluid level would be a mistake. There is no dipstick, and guessing what drained from the pan is not sufficient. You can buy a dipstick from Chrysler or aftermarket sources, or you can make your own. The transmission fill tube has an internal stop at the bottom. You can make a dipstick and place marks in 10mm increments starting at the bottom and moving upward. At 75°F, minimum/maximum fluid level must be 26mm to 38mm. At 180° F, minimum/maximum fluid level must be 38mm to 46mm.

Isolating Common Problems

We’ve just identified some non-issues, but what about when we run into an actual problem? Let’s look at some information that will help isolate those problems once they are presented in the shop. Charts and diagrams show the pressure specifications, tap locations and flow testing information you’ll need for diagnosis.

 As you can see, there are some very high pressures here compared to regular automatics. For pressure testing, use a gauge with a minimum of 1,000 psi (7,000 kPa). A typical JATCO port adapter is required. If you don’t have one, make one by pre-drilling a center hole into a case plug, then brazing to a 1/8” pipe.

It’s easy to identify the pressure tap locations . Most of the taps and the fill plug face the front, toward the radiator and just below the input speed sensor. They form a four-point circle, with the primary pulley pressure tap in the middle. The reverse brake tap is near the shift shaft on top and the secondary pulley tap is on the firewall side. Note: this configuration is specific to JF011E; tap locations differ on other CVT units. Consult available reference material for tap locations on other models.

Let’s take a look at how we can use this information to isolate some common CVT problems. Remember that, because of the high pressures involved, it is suggested you hang the gauge outside the vehicle rather than inside.

In your quest to isolate these concerns, be aware that the converter clutch does not have a ramped apply. It locks dependent on engine rpm of about 1,500 on acceleration. The TCC does not unlock on deceleration until about 10 mph. In contrast, a typical automatic usually applies after a 1-2/2-3 shift and has controlled slip, which is required in those units for drivability and fuel efficiency.
