Bearings from NKE Austria for railway traction motors and gearboxes

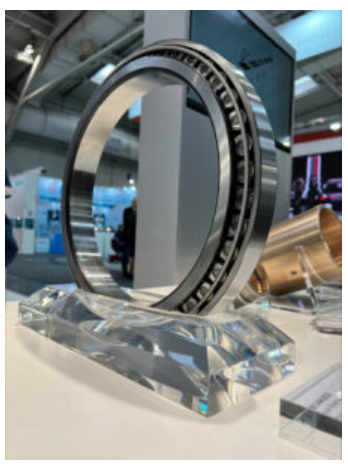

NKE Austria GmbH presents its bearings for railway applications. The bearings are used in traction motors and locomotive gearboxes as well as in railcars, trams, and underground trains.

When designing a rail vehicle, it is essential to consider factors such as loads, speeds, torques, and installation space. These factors must be considered also when selecting the power transmission components. Bearings for gearboxes operate at high speeds and under high loads. They must be able to withstand shocks, vibration, and extreme temperatures. Bearings for traction motors are required to have a long service life. The most commonly used bearing types in rail vehicle gearboxes are cylindrical roller bearings, tapered roller bearings, angular contact ball bearings, four-point contact ball bearings, and deep groove ball bearings.

In traction motors, most typical are cylindrical roller bearings and deep groove ball bearings. Often these bearing types are electrically insulated, with a corresponding coating on the outer or inner ring. For particularly demanding applications, hybrid variants are available. The rolling elements of hybrid bearings are made from heavy-duty silicon nitride (Si3N4), an extremely hard-wearing ceramic. Bearings for gearboxes and traction motors can also be customized and produced to special specifications, for example, higher thermal resistance or more stringent tolerance ranges.

“Our design of electrically insulated cylindrical roller bearings and deep groove ball bearings includes an oxide ceramic coating,” says Klaus Grissenberger, application engineer with NKE in Steyr, Austria. “This offers simple, effective protection against bearing damage from current passing through the bearing.” The insulation significantly reduces the risk of damaged raceways and premature aging of the lubricant and has a dielectric strength of 1000 V and 3000 V with DC or AC voltage respectively. The electrically insulated bearings have the same dimensions and technical properties as conventional bearings, so they are easily replaceable. Versions available are bearings with insulation on the outer ring (SQ77) or on the inner ring (SQ77E).

Hybrid deep groove ball bearings from NKE are noted for the extremely high degree of protection they offer against damaging bearing currents, prolonged service life – also of the lubricant -, exceptionally quiet running, and low friction and associated losses. “Our hybrid deep groove ball and cylindrical bearings represent the premium solution for the prevention of current-induced bearing damage,” says Grissenberger. “This is achieved due to the excellent material properties of the ceramic balls, for example, outstanding compressive strength and rigidity, low density, and of course the highest possible electrical resistance.”

When developing bearing solutions for railway applications, NKE’s Applications Engineering department works closely with customers, which include well-known OEM manufacturers, railway operators, and service providers. All bearings undergo rigorous, documented quality control procedures. Apart from product development, NKE also offers technical support in the selection of bearings, dimensioning, and condition assessment, and conducts training courses. Since 2005, the Austrian bearing manufacturer has delivered over 40,000 bearings for rail vehicles.
